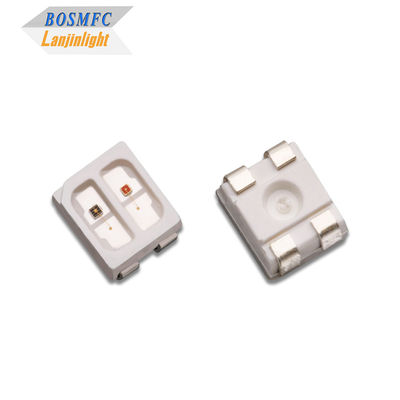

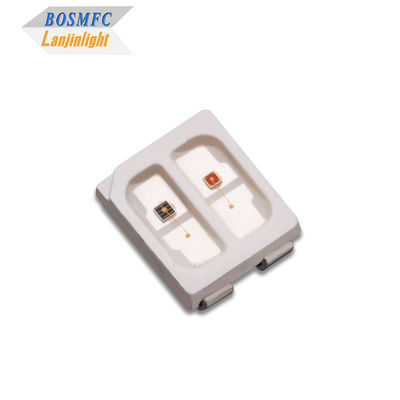

3528 SMD LED dual-color red 620nm+860nm infrared light designed for aesthetic therapy,synergistic skin treatment and pain relief.
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | BOSMFC |
| Certificação: | Rohs, Reach |
| Número do modelo: | 3528 SMD LED RED+ IR |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 2000pcs |
|---|---|
| Detalhes da embalagem: | 2000pcs/bobina, bobina+bolsa anti-estática+caixa |
| Tempo de entrega: | 5-15 dias |
| Termos de pagamento: | T/T, Western Union, PayPal |
| Habilidade da fonte: | 500kk/mês |
|
Informação detalhada |
|||
| Poder: | 0,5W | Cor emissora: | luz LED infravermelha |
|---|---|---|---|
| Comprimento de onda: | 620/850nm | Corrente para frente: | 20mA |
| Tensão para a frente: | 1.8-2.4V/1.3-1.7V | Ângulo de visualização: | 120 ° |
| Tamanho: | 3,5*2,8*1,5 mm | Temperatura operacional (℃): | -40 - +85 |
| Temperatura de armazenamento (℃): | -40 - +100 | Vida útil: | 50.000 horas |
| Garantia: | 3 anos | Marca de chip: | Chip de San'an / chip epistar |
| Pacote: | 2000pcs/bobina | ||
Descrição de produto
3528 SMD LED dual-color red 620nm+860nm infrared light designed for aesthetic therapy,synergistic skin treatment and pain relief.
This custom 3528 SMD LED integrates dual wavelengths—620nm red light and 860nm infrared—into a single compact source. Designed specifically for aesthetic therapy, the red light rejuvenates skin and reduces inflammation, while the deeper-penetrating infrared relieves muscle and joint pain. Their synergistic effect enhances treatment outcomes for professional and home-use skincare and pain relief devices, delivering targeted, effective phototherapy.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Instant light(less than 100ns)
- RoHS and Reach certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 620nm
850nm |
--- |
3 7 |
--- | LM
mW |
IF=20mA |
| Dominant wavelength | 620nm
850nm |
620 840 |
--- |
630 860 |
nm | IF=20mA | |
| Forward voltage | VF | 620nm
850nm |
2.0 1.4
|
--- |
2.4 1.8 |
V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 3.5*2.8*1.5mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/reel |
Applications:
1. Facial Rejuvenation: Stimulates collagen to reduce wrinkles.
2. Acne Reduction: Blue light targets bacteria.
3. Pain Relief: Infrared soothes muscles and joints.
4. Skin Healing: Accelerates tissue repair.
5. Anti-Inflammation: Reduces swelling and redness.
